Children's Hospital of Richmond at VCU

Completed: 2015
Client: Children's Hospital of Richmond at VCU
URL: www.chrichmond.org/About/NEW-Pavilion.htm

Children's Hospital of Richmond at VCU is a multi-story, 640,000sqft, high-tech outpatient pavilion for pediatric services. The Children's Pavilion will be the largest, most advanced outpatient facility dedicated to children in the region, including diagnostic and treatment services for children.

It is designed to meet the unique health care needs of children, and to provide Richmond the most advanced and coordinated care possible. As oasis for children, the new space will feature a James River theme incorporating naturalistic elements like light and green space. The Children's Pavilion will also include new amenities like a sibling center, sky terrace and retail space.

Completed in 2015, Planned Opening March 2016

Noteworthy Concrete Design:

11,000 yards of 5000 & 7000psi in Mass Foundation. Mix needed to be pumped and have an SCC consistency in order to move through 6ft to 7ft of a highly reinforced mat with limited external consolidation.

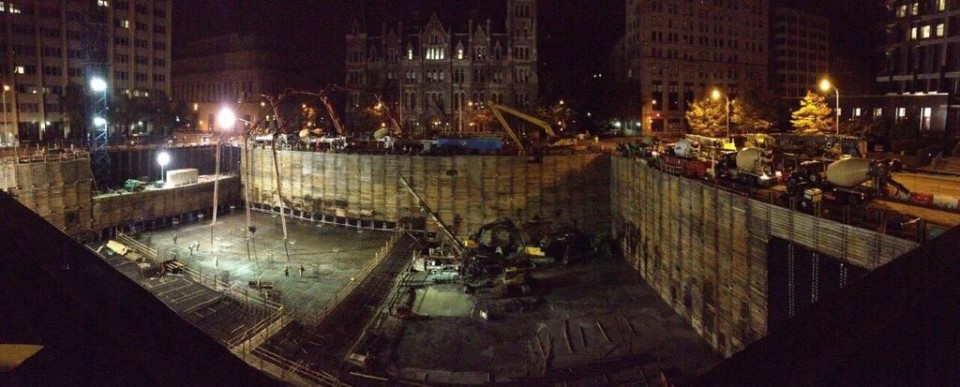

A thorough temperature control plan was utilized to record internal and differential temperatures and to dictate the need of external temperature control methods. Concrete was placed in four pours utilizing three plants to supply the required 300-400yds/hr in the time constraints of downtown overnight road closures.

  • A thorough temperature control plan was utilized to record internal and differential temperatures and to dictate the need of external temperature control methods. Concrete was placed in four pours utilizing three plants to supply the required 300-400yds/hr in the time constraints of downtown overnight road closures.

  • 15,000 yards of low permeability 5000psi pumped structural concrete for parking garage. Concrete mix utilized a 60/40 blend of Portland and Slag Cements along with 3gal/yard Corrosion Inhibitor.

  • 6,650 yards of 7000 & 8000psi high performance columns and shearwalls.

  • 4 Level of of Cast in Place concrete parking below grade

  • Ground Level drop off and occupied space

  • 3 levels of Cast in Place parking above grade

  • 7 levels of steel framed clinical, shell space and mechanical.

Other Noteworthy Design Aspects:

Street level Ground Floor includes stepped planters with native vegetation and brick-and-stone paving. Elevated Level 1 sky lobby includes an expansive outdoor sky garden equipped with an interactive play space, gardens and trees. Upper levels include 3-story atrium spaced with monumental stair surrounded by glass curtain wall. Ground level columns and Level 1 perimeter parapet wall consists of Architecturally Exposed Concrete. Completed structure has been designed for future horizontal and vertical expansion.

Receipt ants of the Awards are:

Architect : HKS Inc (Craig Rader)
Structural Engineer : DMWPV (Brian Stanley, P.E.)
Contractor : Skanska USA (Neil Whaley)
Concrete Contractor: Cleveland Cement (Clay Haselden)
Concrete Supplier: Vulcan Materials Company (Shelley Wright, PE)
